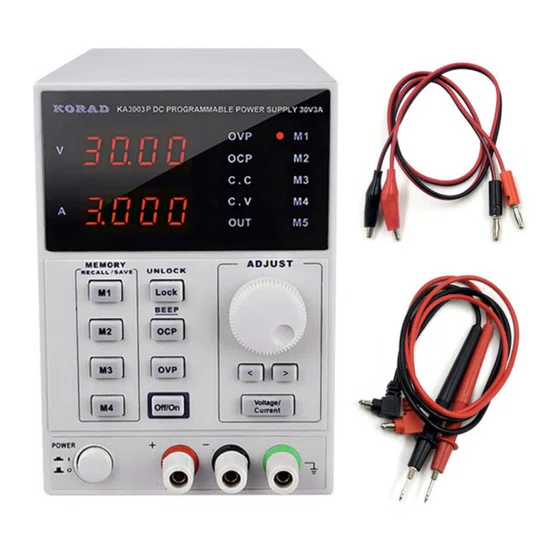

KORAD KA3003P Programmable Dc Power Supply (ออกใบกำกับภาษีได้ )

Models KA3003D/
KA3003P KA3005D/
KA3005P KA3010D/
KA3010P KA6002D/
KA6002P KA6003D/
KA6003P KA6005D/
KA6005P
Voltage Range 0-30V 0-30V 0-30V 0-60V 0-60V 0-60V
Current Range 0-3A 0-5A 0-10A 0-2A 0-3A 0-5A
Load Regulation
Voltage ≤0.01%+2mV ≤0.01%+2mV ≤0.01%+3mV ≤0.01%+2mV ≤0.01%+2mV ≤0.01%+2mV
Current ≤0.1%+5mA ≤0.1%+10mA ≤0.1%+20mA ≤0.1%+5mA ≤0.1%+5mA ≤0.1%+10mA
Line Regulation
Voltage ≤0.01%+3mV ≤0.01%+3mV ≤0.01%+3mV ≤0.01%+3mV ≤0.01%+3mV ≤0.01%+3mV
Current ≤0.1%+3mA ≤0.1%+3mA ≤0.1%+3mA ≤0.1%+3mA ≤0.1%+3mA ≤0.1%+3mA
Setup Resolution
Voltage 10mV 10mV 10mV 10mV 10mV 10mV
Current 1mA 1mA 1mA 1mA 1mA 1mA
Setup Accuracy(25℃±5℃)
Voltage ≤0.5%+20mV ≤0.5%+20mV ≤0.5%+20mV ≤0.5%+300mV ≤0.5%+300mV ≤0.5%+300mV
Current ≤0.5%+5mA ≤0.5%+10mA ≤0.5%+20mA ≤0.5%+5mA ≤0.5%+10mA ≤0.5%+5mA
Ripple(20-20M)
Voltage ≤1mVrms ≤2mVrms ≤2mVrms ≤1mVrms ≤1mVrms ≤1mVrms
Current ≤3mVrms ≤3mVrms ≤5mVrms ≤3mVrms ≤3mVrms ≤3mVrms
Temp.Coefficient
Voltage ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm
Current ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm
Read Back Resolution
Voltage 10mV 10mV 10mV 10mV 10mV 10mV
Current 1mA 1mA 1mA 1mA 1mA 1mA
Read Back Temp.Coefficient
Voltage ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm
Current ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm ≤150ppm
Reaction Time
Voltage Rise ≤100mS ≤100mS ≤100mS ≤100mS ≤100mS ≤100mS
Voltage Drop ≤100mS ≤100mS ≤100mS ≤100mS ≤100mS ≤100mS
(10% Rated load) (10% Rated load) (10% Rated load) (10% Rated load) (10% Rated load) (10% Rated load)
Interface(for programmable models KA3003P,KA3005P,KA6002P,KA6003P,KA3010P & KA6005P)
RS232,USB
Accessories
User manual,power cord(KA3003D,KA3005D,KA3010D,KA6002D,KA6003D & KA6005D)
User manual,power cord,USB cable & software CD(KA3003P,KA3005P,KA3010P,KA6002P,KA6003P & KA6005P)
Weight and Dimension
KA3003,KA3005,KA6002 & KA6003:100mm(W)*156mm(H)*260mm(D)
KA6005 & KA3010:110mm(W)*156mm(H)*260mm(D)
KA3003x3.7kg,KA3005x4.32kg,KA6002x4.21kg,KA6005x8kg & KA3010x8.3kg
